PacWrap® Turbo-Aire Shrink Tunnels For Shrink Bands, Shrink Sleeves, and all your heat shrinkable film products. Made in America

Manufactured in America for over 30 years! Plugs into any 110v outlet (220v version available), portable table top design or built on its own optional stand, heavy-duty steel construction, variable speed heated conveyor with separate conveyor belt thermostat, temperature range 0 to 550 f (288 c), energy efficient with automatic cool down after use, isolated electronics for safety, shrinks up to 22 packages per minute.

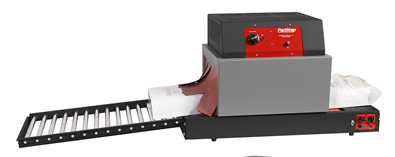

Model 1580 features 8" high by 15" wide chamber opening, shown with optional exit conveyorModel 1580 - 8" high by 15" wide chamber opening: priced from $2.295.00 (table top unit, with optional exit conveyor)


Model 1512, 12" high by 15" wide chamber opening from $2,695.00Model 1512 - 12" high by 15" wide chamber opening: priced from $2,695.00 (shown with optional stand and exit conveyor)

Click for more info on our Model 1520 - 20" High by 15" wide chamber opening for Gift Baskets and High Profile Packages

Click for Even larger shrink tunnels - Model 2520 : (25" wide by 20" high) and Model 2530: (25" wide by 30" high)

Every shrink tunnel we manufacture, every model, every size is built with the same highest quality features and components for years of trouble free use

AUTOMATIC COOL-DOWN CYCLE FOR YEARS FOR TROUBLE FREE OPERATION

AFFORDABLY PRICED - INDUSTRIAL PERFORMANCE - ONE YEAR LIMITED WARRANTY - WE CUSTOMIZE

Perfect for most shrink bands, shrink sleeves, shrink tubing and bags, and shrink films.

Call and let us customize the heat and airflow perfectly for your products at zero cost to you!

Permanently Lubricated Motors, Blowers & Fans provides you maintenance free performance for reliability. Designed and built to run 24 hours a day under continuous use.

These PacWrap® Turbo-AireShrink Tunnels deliver industrial quality performance with virtually any shrink film, yet operate on standard 110 volt power (20 amp circuit required). We also manufacture 220/240 volt models, suitable for 50/60 Hz power.

Energy Efficient / Fully Insulated Heat Tunnel Chambers - Isolated electronics for long life and safety.

Dual Side Ducted,
recirculated heated air, the most energy efficient!

Separate Thermostats for the
tunnel chamber and heated conveyor belt assures complete heat coverage for fast, uniform shrinkage of shrink film, shrink labels, shrink bands or shrink tubing around the package.

The Automatic Cool-Down Cycle on these
PacWrap® Shrink Tunnels will save you time and money for years to come.
How does it do that? By eliminating the need to manually turn down the thermostat and cool down the chamber and conveyor after each use.

With Automatic Cool-Down, when your shrink wrapping is completed, you simply flip-off the main power switch. The heaters then shut-down while the motors, blowers and fans continue to run until a safe stopping temperature is achieved. (About 10 minutes). Then the tunnel will automatically and safely shut off.

This automatic cooling after each use feature not only makes these
shrink tunnels easy to use, it greatly extends the life of the motors, blowers and fans. Automatic cool-down eliminates the daily setting up of the correct temperatures and conveyor speeds. It really is "set it once and forget it".

Once the operator is happy with the shrink results coming out of the tunnel, THERE'S VIRTUALLY NO NEED TO TOUCH THE HEAT CONTROLS AGAIN! Quick 7 to 10 minute warm up times too!


With your choice of heat tunnel chamber heights of 8 inches, 12 inches and 20 inches, these tunnels are designed and built to provide the perfect combination of heat and airflow for virtually any standard shrink band, shrink sleeve, shink film or shrink tubing.

Highly energy efficient, these heat shrink tunnels feature 15" wide tunnel chamber openings.

Factory direct prices, economical to own and operate. There's no need to buy heat shrink tunnels used when you can have a brand new, designed and built in America, shrink tunnel machine designed to run 24 hours a day, and customized (usually at no cost to you) for your application.


SPECIFICATIONS
Model 1580
Model 1512
Tunnel Chamber Opening
8" High 15" Wide
12" High 15" Wide
Overall Dimensions
35.5" Long 19.5" Wide 21 "High
35.5" Long 19.5" Wide 26" High
Tunnel Conveyor

Variable Speed, Thermostatically controlled Heated Belt

Belt Speeds: 0-50 FPM

Variable Speed, Thermostatically controlled Heated Belt

Belt Speeds: 0-50 FPM

Power Requirements
110 Volt (Standard Household
Type Current)
20 amp circuit required
(220/240V 50/60Hz option available)

110 Volt (Standard Household
Type Current)
20 amp circuit required
(220/240V 50/60Hz option available)

Built in America for 30 years by ATW Manufacturing Company, Inc. Eugene, Oregon
Phone: 800 759-3388, 541 484-2111, Fax: 541 484-1493

email
For complete current or special pricing, call 800-759-3388 or email

.Shown with optional stand ($535.00) & 24" takeaway conveyor ($335.00)

Shown with optional 24 inch roller takeaway conveyor ($335.00)CUSTOM DESIGNS AVAILABLE, call us 800 759-3388

© 2001 - 2018 ATW Manufacturing Company, Inc. Eugene, Oregon.

HOME | ABOUT US | CONTACT US | GENERAL INFORMATION

Fully Insulated Recirculating Heat Chambers for
Energy Efficiency!

Model 1580
Tunnel chamber opening sizes
8" High 15" Wide

Model 1512
12" High 15" Wide

Automatic Cooling and Shutdown after use.

Variable Speed Heated Conveyor Belt with adjustable belt heat settings

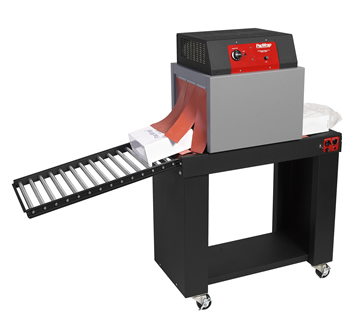

Model 1512 Shrink Tunnel

Shown with Optional Stand, with full width Shelf & Locking Casters ($535.00) and 24" long Roller Take-Away Conveyor ($335.00)

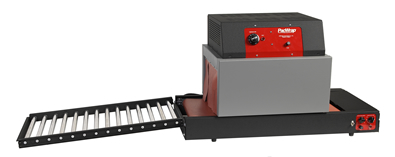

Model 1580 Shrink Tunnel

Shown with Optional 24" Roller Take-Away Conveyor
($335.00)

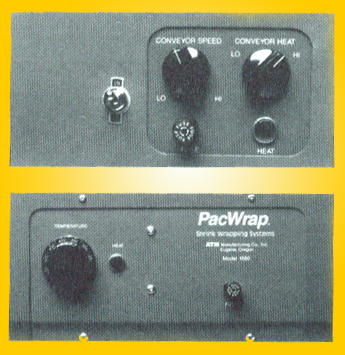

Variable Speed
Conveyor With Infinitely Adjustable Thermostat for Belt Heat Control


Shrink Tunnel
Electronics are Isolated From the Tunnel Top Heat Chamber For Long Life


Shipping Weights
without stand
Model 1580, 160 Ibs.
Model 1512, 185 Ibs
.

One-Year
Limited
Warranty
